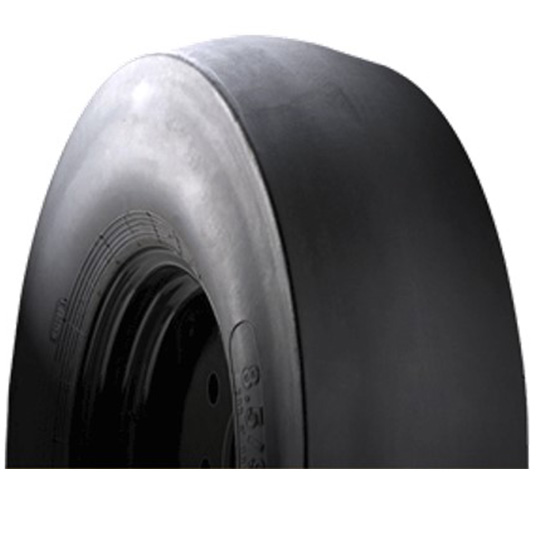

FL-SF301
Features
- Feature:
- • Litter rolling resistance&low heat generating.
- • Little energy conservation&strong rockfall resistance.
- • It is the best choice for balanced forklift and other industrial vehicles.
- • High land ratio for longer life
Suitable
Share To:
Size And Specs
| SOLID Size (inch) | Rim Size(inch) | Pattern | Outside Diameter | Section Width | Static Radius Under Load | Approx Net Weight | Load Capacity(kg) Counter Balanced Lift Truck | OtherIndustrial Vehicles(kg) | |||||
| ±5mm | ±5mm | mm | ±1.5％kg | 10km/h | 16km/h | 25km/h | 16km/h | ||||||
| Driving | steering | Driving | steering | Driving | steering | ||||||||
| 4.50-12 | 3.00,3.50 | FL-SF301 | 553 | 120 | 260 | 22.2 | 1440 | 1150 | 1390 | 1045 | 1300 | 980 | 990 |
| 5.00-8 | 3.00D,3.50D | FL-SF301 | 469 | 127 | 221 | 18.5 | 1210 | 970 | 1175 | 880 | 1095 | 820 | 840 |
| 5.50-15 | 4.50E | FL-SF301 | 676 | 144 | 318 | 41 | 2525 | 1870 | 2415 | 1790 | 2195 | 1625 | 1690 |
| 6.00-9 | 4.00E | FL-SF301 | 545 | 148 | 256 | 28 | 1920 | 1535 | 1822 | 1390 | 1730 | 1295 | 1325 |
| 6.50-10 | 5.00F | FL-SF301 | 597 | 158 | 281 | 37.5 | 2640 | 2110 | 2545 | 1910 | 2370 | 1780 | 1820 |
| 6.50-16 | 5.50F | FL-SF301 | 748 | 165 | 364 | 59 | 3425 | 2740 | 3285 | 2465 | 3080 | 2310 | 2365 |
| 7.00-12 | 5.00S | FL-SF301 | 683 | 167 | 322 | 48 | 3015 | 2410 | 2910 | 2185 | 2710 | 2035 | 2075 |
| 7.00-15 | 5.50S,6.00 | FL-SF301 | 759 | 186 | 360 | 64.5 | 3590 | 2870 | 3465 | 2600 | 3225 | 2420 | 2475 |
| 7.50-16 | 5.50F | FL-SF301 | 819 | 181 | 389 | 77 | 3910 | 3130 | 3780 | 2835 | 3520 | 2640 | 2700 |
| 8.25-12 | 5.00S | FL-SF301 | 735 | 206 | 346 | 76 | 3325 | 2660 | 3215 | 2410 | 2995 | 2245 | 2295 |
| 8.25-15 | 6.50T,5.50S | FL-SF301 | 847 | 212 | 400 | 97 | 4940 | 3950 | 4765 | 3575 | 4440 | 3330 | 3405 |
| 8.25-20 | 6.50T,7.00 | FL-SF301 | 992 | 219 | 472 | 130.2 | 5425 | 4340 | 5240 | 3930 | 4880 | 3735 | 3475 |
| 23×10-12 | 8.00G | FL-SF301 | 597 | 230 | 282 | 52 | 4005 | 3205 | 3845 | 2885 | 3605 | 2705 | 2765 |
| 27×10-12 | 8.00G | FL-SF301 | 683 | 236 | 320 | 73 | 4465 | 3570 | 4315 | 3235 | 4020 | 3015 | 3080 |
| 28×9-15 | 7 | FL-SF301 | 706 | 230 | 335 | 69 | 4090 | 3270 | 3945 | 2960 | 3675 | 2755 | 2820 |
| 200/50-10 | 6.50F | FL-SF301 | 458 | 198 | 211 | 25.3 | 2370 | 1900 | 2290 | 1720 | 2135 | 1605 | 1630 |
| 250-15 | 7.00,7.50 | FL-SF301 | 735 | 235 | 348 | 77.5 | 4365 | 3490 | 4220 | 3160 | 3930 | 2955 | 3010 |
| 300-15 | 8 | FL-SF301 | 838 | 256 | 384 | 115.5 | 5990 | 4790 | 5780 | 4335 | 5380 | 4035 | 4130 |
| 355/65-15 | 9.75 | FL-SF301 | 823 | 301 | 384 | 134 | 7120 | 5700 | 6880 | 5170 | 6410 | 4820 | 4910 |
| 8.25-16 | 6.50H-16 | FL-SF301 | 855 | 235 | 418 | 78 | 4940 | 3950 | 4765 | 3575 | 4440 | 3330 | 3405 |
| 9.00-20 | 6.50T,7.00 | FL-SF301 | 1038 | 238 | 471 | 151.8 | 6450 | 5160 | 6235 | 4675 | 5805 | 4355 | 4450 |
| 10.00-20 | 7.50,8.00 | FL-SF301 | 1073 | 252 | 508 | 175 | 7240 | 5795 | 6695 | 5245 | 6510 | 4885 | 4995 |
| 11.00-20 | 7.50,8.00 | FL-SF301 | 1058 | 277 | 502 | 195 | 7560 | 6050 | 7300 | 5490 | 6810 | 5120 | 5210 |
| 12.00-20 | 8.00,8.50 | FL-SF301 | 1146 | 290 | 528 | 235 | 8445 | 6755 | 8105 | 6080 | 7600 | 5700 | 5825 |
| 12.00-24 | 8.5 | FL-SF301 | 1247 | 309 | 591 | 287 | 9575 | 7655 | 9235 | 6925 | 8600 | 6450 | 6595 |
| 14.00-20 | 10 | FL-SF301 | 1260 | 332 | 590 | 363 | 10800 | 8640 | 10430 | 7840 | 9730 | 7315 | 7450 |
| 14.00-24 | 10 | FL-SF301 | 1368 | 335 | 636 | 391 | 11865 | 9490 | 11390 | 8545 | 10680 | 8010 | 8185 |
